ChemiPal B100 Series
Western Blot dedicated — deep-cooled high-sensitivity scientific camera captures the faintest chemiluminescence; auto-overlay of color protein Marker and luminescent bands; HDR delivers full dynamic range in a single shot.
Technical Specifications
Key Parameters at a Glance
Applications
Best-fit experiments
- Western Blot (HRP / AP substrates)
- Southern / Northern blot membranes

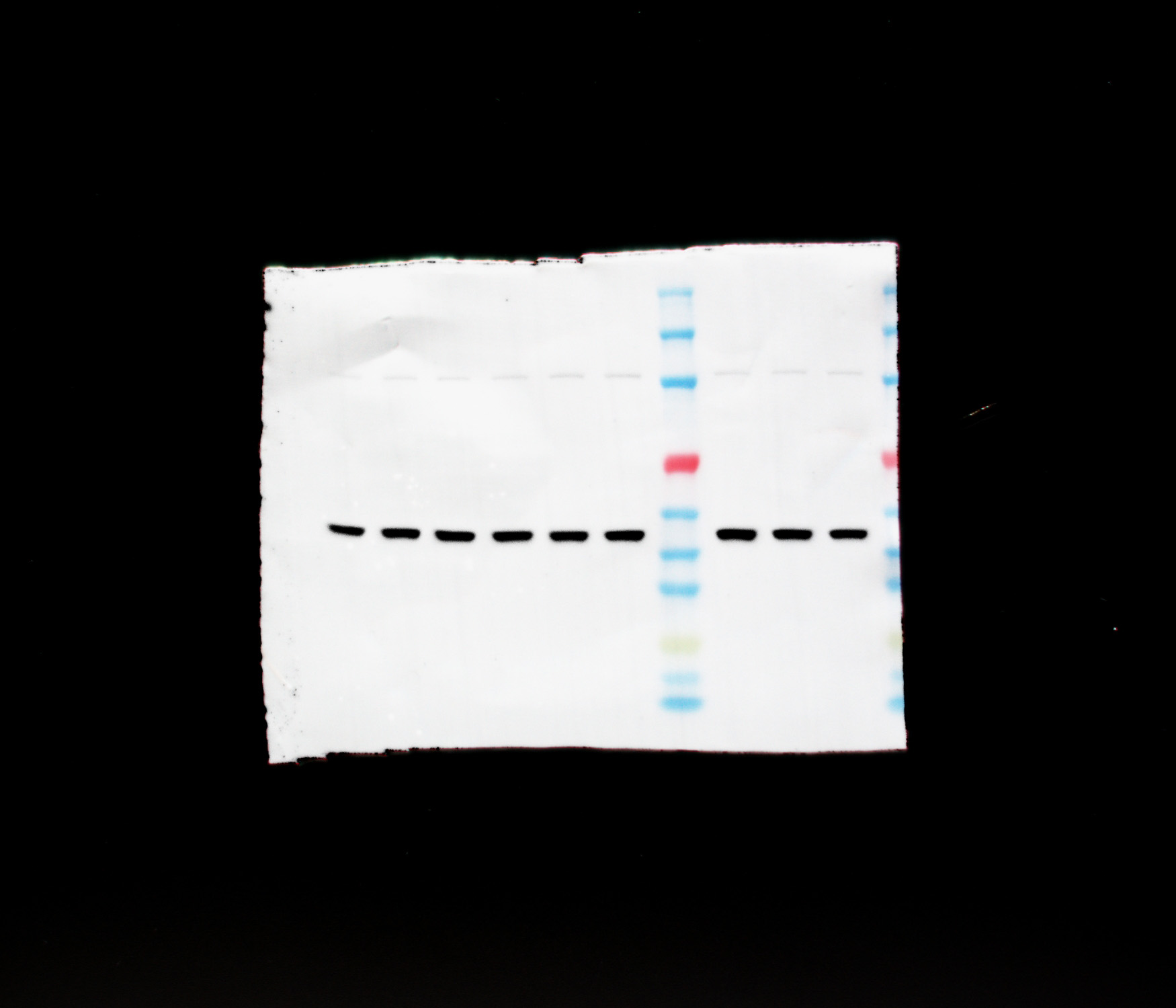

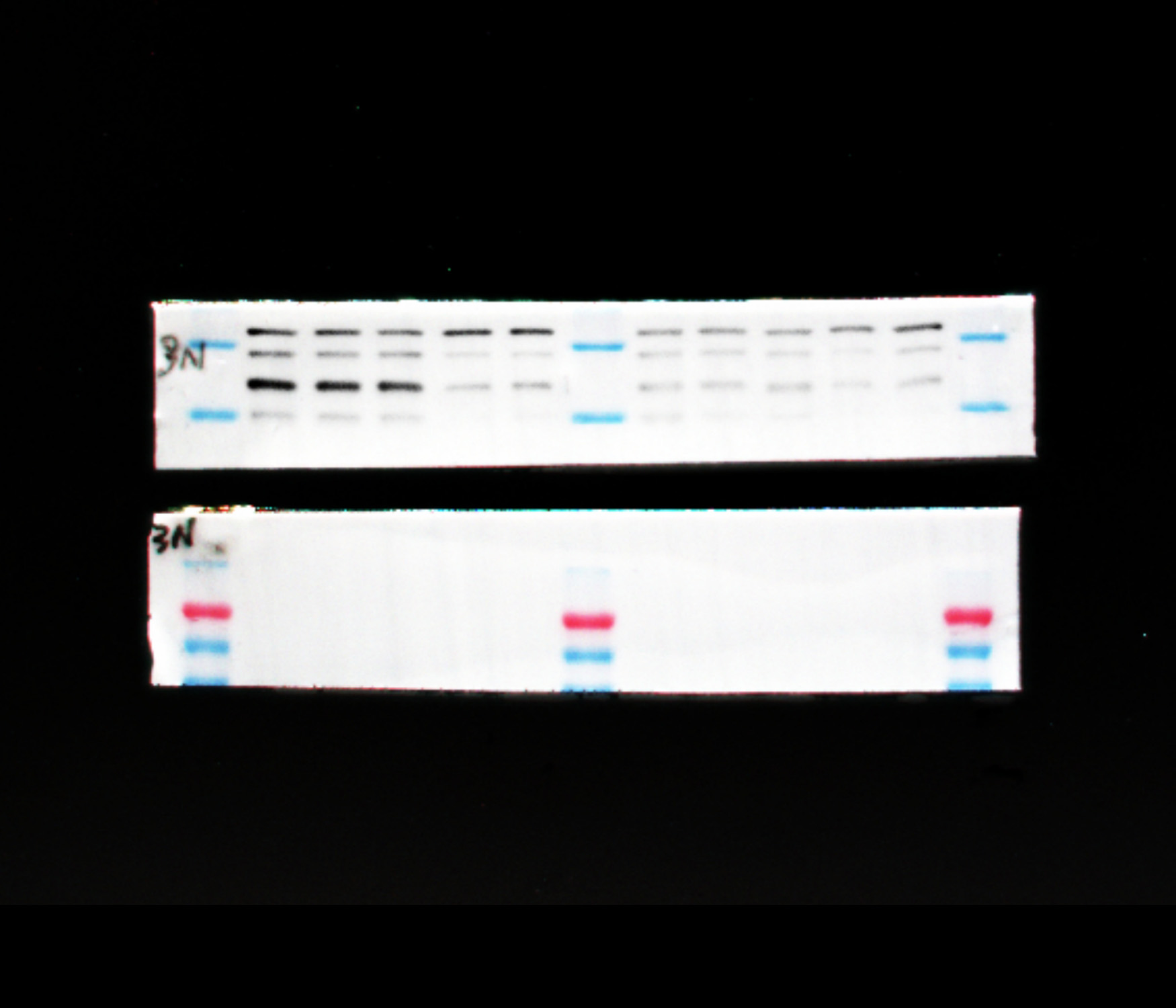

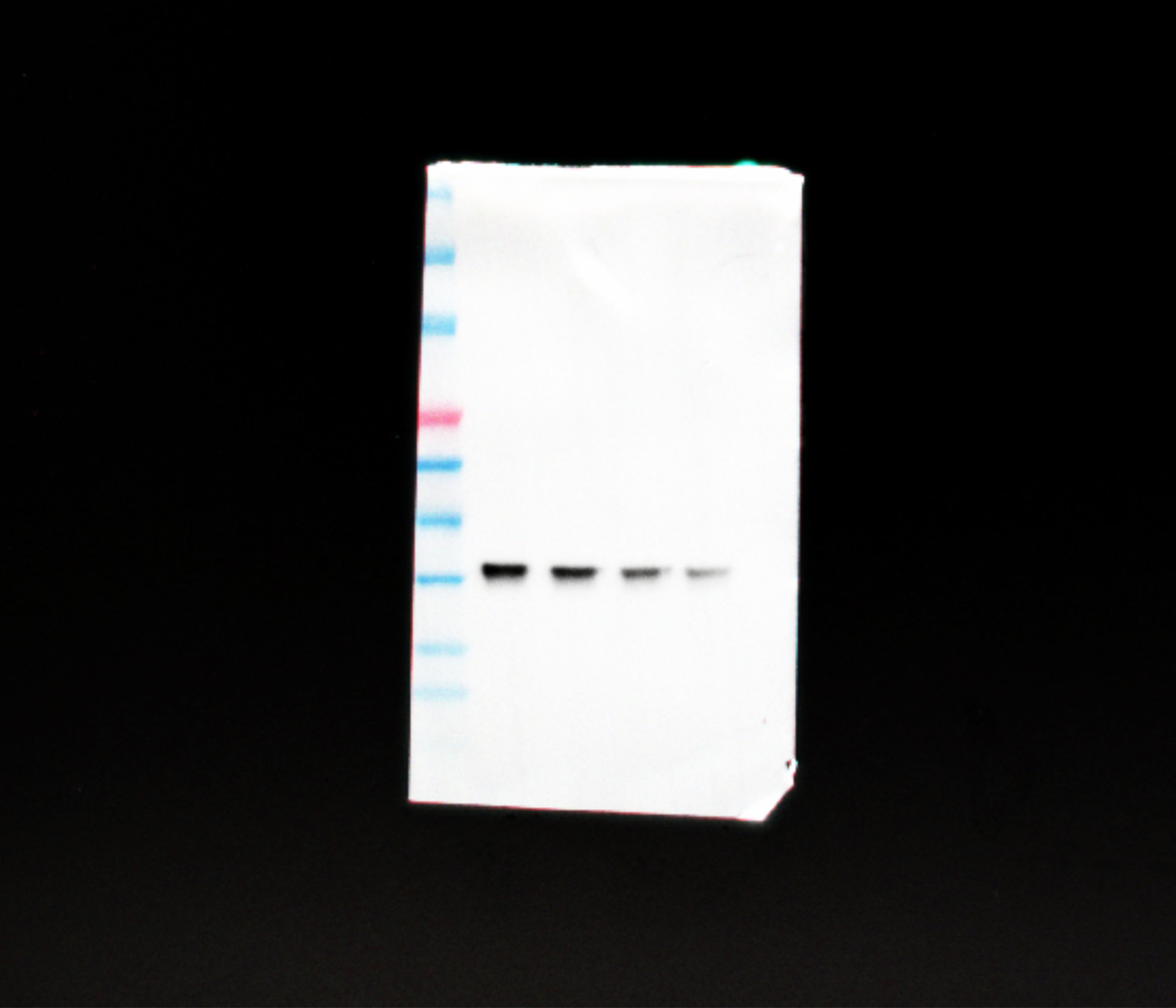

- Auto-overlay color protein Marker with luminescent bands
- HDR capture: faint detail and bright peak in one shot
Core Features
Engineered for scientists, down to the detail.
Deep-cooled sCMOS
B180 absolute < -25°C, 0.9 e⁻ read noise — near-zero background even at long exposure.
AI · HDR auto-exposure
Captures strong and weak bands in one shot — faster, more stable.
Auto Marker overlay
RGB tri-channel reflective light auto-captures the color Marker, then merges with the luminescent bands.
F0.95 wide-aperture lens
Optional F0.8 lens — maximum light gathering for femtogram-level signal.
Software
ZenImager Pro
An imaging workflow built for Western Blot
- HDR auto-exposure + faint-band live warning
- Auto registration & color overlay of Marker and bands
- Band quantitation, reference normalization, report export
- TIFF 16-bit raw, journal-submission ready
What's in the Box
Standard accessories
- ChemiPal B100 / B180 main unit × 1
- Western Blot tray × 1
- RGB reflective light module × 1 (built-in)
- Power adapter + cord × 1
- USB / Ethernet × 1 each
- User manual + warranty card × 1
Warranty & Service
After-sales & technical support
FAQ
Common questions you may ask
What's the difference between B100 and B180?+
B180 cools deeper (absolute < -25°C) with 0.9 e⁻ read noise — ideal for ultra-faint signals and long exposures.
Which ECL substrates are supported?+
All mainstream HRP / AP ECL substrates: regular, enhanced and supersensitive.
Are exports journal-ready?+
Yes — uncompressed TIFF 16-bit raw, matching Nature / Cell raw-image requirements.
Compatible with existing ImageJ / ImageLab?+
Yes — all raw output is standard TIFF / JPEG, opens directly in ImageJ, ImageLab, Image Studio.
Want to see ChemiPal B100 Series in action?
Book our application scientists for a demo tailored to your samples and workflow.
